anno

anno#

Annotate a single tandem repeat (TR) locus across polulation with motif decomposition and variation analysis.

This subcommand takes a FASTA file containing one or more sequences of a single TR locus (e.g., a STR, centromere or satellite array) and performs:

  1. Decomposition — Builds a De Bruijn graph from k-mers to discover the underlying motif set, either de novo or using a reference motif database.

  2. Annotation — Aligns the sequence against the discovered motifs to produce a motif-level annotation (position, copy number, orientation).

  3. Report generation — Produces tabular outputs and an interactive HTML report summarizing motif composition and variation.

  4. h5ad file generation - Produces h5ad file for downstream analysis.

Usage#

vampire anno [options] <input.fa> <output_prefix>

Examples#

# Auto-detect parameters (add --use-raw to capture every different motifs)
vampire anno （--use-raw） input.fa output/prefix

# Manually set k-mer size
vampire anno --no-auto -k 13 input.fa output/prefix

# Use a custom reference motif FASTA
vampire anno -m /path/to/motifs.fa input.fa output/prefix

# Disable de novo motif finding, use custom reference motif set
vampire anno --no-denovo -f -m /path/to/motifs.fa input.fa output/prefix

# Align motifs on the reverse strand as well (useful for long satellite sequences)
vampire anno --reverse input.fa output/prefix

Example run#

Below is a real run on a 30bp bp VNTR (chr1:152,046,914-152,048,075) in the gene IVL across 321 samples:

>T2T-CHM13
TGGAGCTCCCAGAGCAGCAGGAGGGGCACCTGAAGCACCTAGAGCAGCAGGAGGGACAGCTGAAGCACCCGGAGCAGCAGGAGGGGCAGCTGGAGCTCCCAGAGCAGCAGGAGGGGCAGCTGGAGCTCCCAGAGCAGCAGGAGGGGCAGCTGGAGCTCCCAGAGCAGCAGGAGGGGCAGCTGGAGCTCCCAGAGCAGCAGGAGGGGCAGCTGGAGCTCCCACAGCAGCAGGAGGGGCAGCTGGAGCTCTCTGAGCAGCAGGAGGGGCAGCTGGAGCTCTCTGAGCAGCAGGAGGGGCAGCTGGAGCTCTCTGAGCAGCAGGAGGGACAGCTGAAGCACCTGGAGCACCAGGAGGGGCAGCTGGAGGTCCCAGAGGAGCAGATGGGGCAGCTGAAGTACCTGGAACAGCAGGAGGGGCAGCTGAAGCACCTGGATCAGCAGGAGAAGCAGCCAGAGCTCCCAGAGCAGCAGATGGGGCAGCTGAAGCACCTGGAGCAGCAGGAGGGGCAGCCTAAGCATCTGGAGCAGCAGGAGGGGCAACTGGAGCAGCTGGAGGAGCAGGAGGGGCAGCTGAAGCACCTGGAGCAGCAGGAGGGGCAGCTGGAGCACCTGGAGCACCAGGAAGGGCAGCTGGGGCTCCCAGAGCAGCAGGTGCTGCAGCTGAAGCAGCTAGAGAAGCAGCAGGGGCAGCCAAAgcacctggaggaggaggaggggcagctGAAGCACCTGGTGCAGCAGGAGGGGCAGCTGAAGCATCTGGTGCAGCAGGAGGGGCAGCTGGAGCAGCAGGAGAGGCAGGTGGAGCACCTGGAGCAGCAGGTGGGGCAGCTGAAGCACCTAGAGGAGCAGGAGGGACAACTGAAGCATCTGGAGCAGCAGCAGGGGCAGTTGGAGGTCCCAGAGCAGCAGGTGGGGCAGCCAAAGAacctggagcaggaggagaagcaaCTGGAGCTCCCAGAGCAGCAAGAGGGCCAGGTGAAGCACCTGGAGAAGCAGGAGGCACAGCTGGAGCTCCCAGAGCAGCAGGTAGGACAGCCAAAGCACCTGGAACAGCAGGAAAAGCACCTAGAGCACCCAGAGCAGCAGGACGGACAACTAAAACATCTGGAGCAGCAGGAGGGGCAGCTGAAGGACCTGGAGCAGCAGAAGGGGCAGCTGGAGCAGCCTG
...

Command:

vampire anno IVL.fa IVL_anno

Discovered motif IVL_anno.motif.tsv:#

id

motif

copyNumber

label

0

GGAGCAGCAGGAGGGGCAGCTGAAGCTCCT

5446.0

unknown_1

1

AGAGCAGCAGGAGGGGCAGCTGGAGCTCCC

5269.4

unknown_1

2

GGTGCAGCAGGAGGGGCAGCTGAAGCATCT

1296.0

unknown_1

3

TGAGCAGCAGGAGGGGCAGCTGGAGCTCTC

835.0

unknown_1

The motif is stored in its canonical rotation; the observed copies in the input are rotations of this sequence.

Locus-level summary IVL_anno.concise.tsv:#

chrom

length

start

end

motif

orientation

copyNumber

score

cigar

T2T-CHM13

1173

1

1173

1,0,0,1,1,1,1,1,3,3,3,0,1,0,0,1,0,2,0,0,0,1,0,0,2,1,1,0,0,2,1,0,1,0,1,0,1,2,0,1

+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+

39.4

1620

28=1X1=/6=1X3=1X14=1X4=/6=1X2=1X20=/30=/30=/30=/30=/11=1X18=/30=/30=/25=1X4=/6=1X9=1X13=/5=1X8=1X5=2X8=/5=2X6=1X16=/6=1X6=1X9=2X5=/2X18=2X8=/6=1X23=/2X10=1X15=1X1=/2=1X3=2X6=1X15=/6=1X23=/2=1X3=1X9=1X5=1X7=/3=1X17=1X1=2X5=/6=2X2=1X3=1X5=1X9=/2X4=1X7=1X2=1X12=/7=1X22=/2=1X3=2X1=2X1=1X17=/3=7D1=2D10=1X5=1X/2=1X3=1X14=1X8=/6=1X3=1X3=1X10=1X2=1X1=/12=1X7=1X8=1X/5=1X15=1X8=/2X3=2X10=1X5=2X3=1X1=/19=1X5=1X3=1X/6=1X7=1X9=2X4=/21=2X2=1X4=/2X4=1X6=1X8=3X3=1X1=/1=1X4=1X15=1X2=1X2=1X1=/1=1X2=1X7=1X17=/5=2X13=1X9=/6=2X2=1X1=

…

…

…

…

…

…

…

…

…

copyNumber is the estimated total copy number of the motif across the locus, and cigar joins the per-block motif CIGARs (/ separates blocks).

Segment-level annotation IVL_anno.annotation.tsv:#

chrom

length

start

end

motif

orientation

sequence

score

cigar

T2T-CHM13

1173

1

30

1

+

TGGAGCTCCCAGAGCAGCAGGAGGGGCACC

54

28=1X1=/

T2T-CHM13

1173

31

60

0

+

TGAAGCACCTAGAGCAGCAGGAGGGACAGC

42

6=1X3=1X14=1X4=/

T2T-CHM13

1173

61

90

0

+

TGAAGCACCCGGAGCAGCAGGAGGGGCAGC

48

6=1X2=1X20=/

T2T-CHM13

1173

91

120

1

+

TGGAGCTCCCAGAGCAGCAGGAGGGGCAGC

60

30=/

T2T-CHM13

1173

121

150

1

+

TGGAGCTCCCAGAGCAGCAGGAGGGGCAGC

60

30=/

…

…

…

…

…

…

…

…

…

Here, the first block contains a 1-bp mismatch (28=1X1=/) relative to the canonical motif, demonstrating the sequence divergence between the actual sequence and the annotated motif. Add the --use-raw parameter to capture every different motifs.

Pairwise motif distance IVL_anno.distance.tsv:#

target

query

distance

is_rc

1

3

2

false

0

3

3

false

0

2

3

false

0

1

3

false

2

3

4

false

1

2

6

false

0

0

10

true

3

3

11

true

0

1

12

true

1

3

13

true

0

3

13

true

0

2

13

true

1

1

13

true

2

3

14

true

2

2

14

true

1

2

15

true

Here stores the pairwise distances between any two motifs on both strands. This will be used in the adata object construction process.

Adata object IVL_anno.h5ad#

The file is one of the core output of the VAMPIRE annotation pipeline, storing the processed satellite DNA motif annotation results in the AnnData format. This hierarchical data structure is designed for downstream analysis.

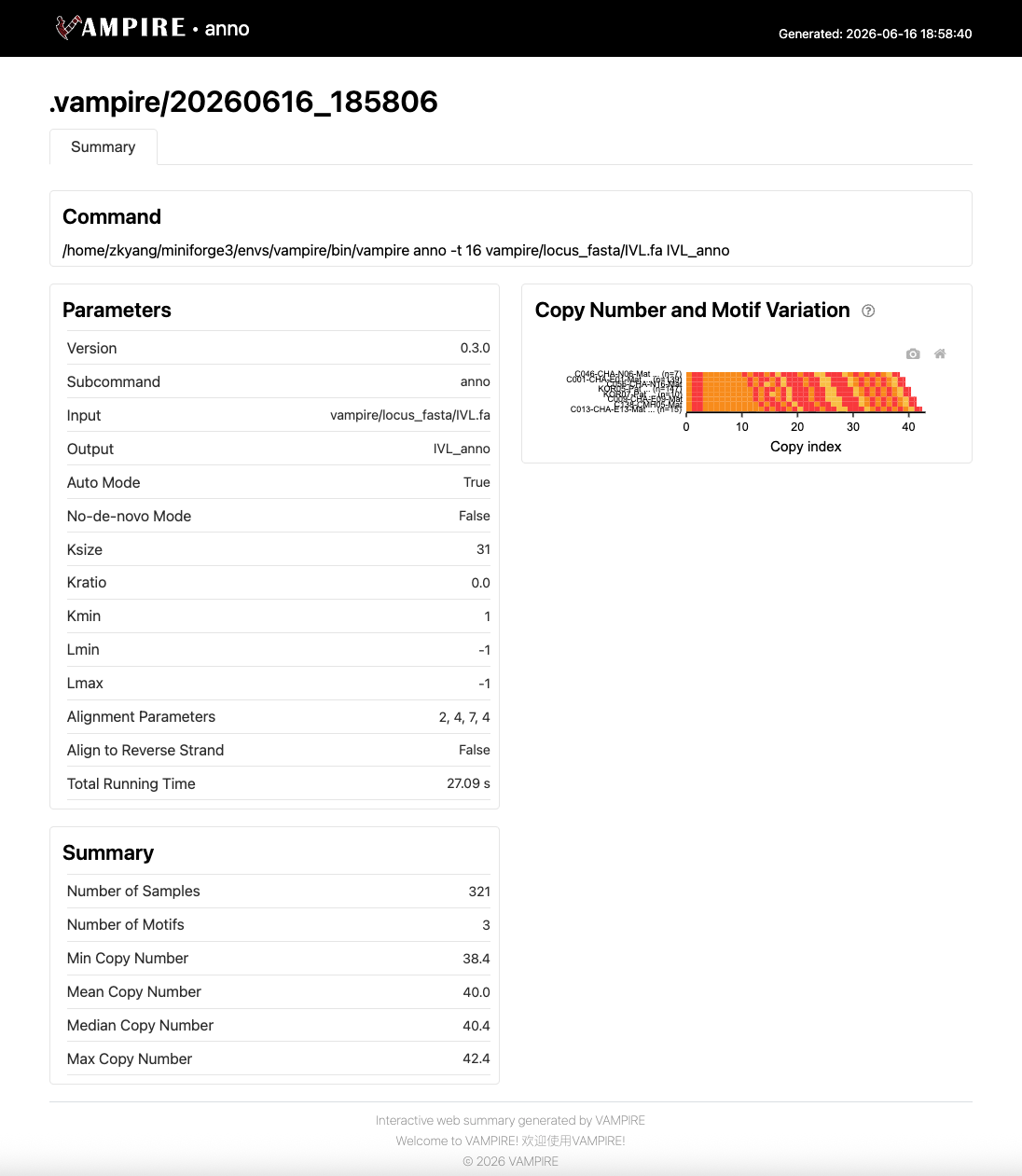

Web summary IVL_anno.web_summary.html#

This interactive HTML report presents the annotation results generated by the VAMPIRE. It provides a comprehensive overview of the parameters employed, copy number distribution, and waterfall plot across all samples.

anno workflow

Downstream analysis using vp.anno#

import vampire as vp

# read_anno() use *.annotation/concise/motif/distance.tsv to load data

# directly use annotation results
adata = vp.anno.pp.read_anno("IVL_anno.annotation.tsv")

# use raw sequences
# read pre-computed raw sequence annotations (generated with --use-raw)
adata = vp.anno.pp.read_anno("IVL_anno_raw.annotation.tsv")
# compute raw sequences from standard annotation results
adata = vp.anno.pp.read_anno("IVL_anno.annotation.tsv", use_raw = True)

When to use --use-raw for vampire anno or use_raw=True for vp.anno.pp.read_anno()

Use this mode when you need to analyze the actual observed sequences instead of the detected, canonicalized motif catalog. This preserves rare variants and structural heterogeneity, but increases the number of motifs.

Note: Complex or mixed tandem repeats may yield ambiguous motif alignments and unstable phase calling in this mode.

Arguments#

Argument

Description

input

Input FASTA file to annotate

prefix

Output prefix for all result files

Options#

General Options#

Option

Default

Description

-t, --thread, --threads

4

Number of threads

--no-auto

False

Skip automatic estimation of k-mer size and related parameters

--debug

False

Output debug info and keep temporary files

--seq-win-size

5000

Parallel window size for annotation (bp)

--seq-ovlp-size

1000

Overlap between consecutive windows (bp)

-j, --job

None

Job directory for temporary files

-r, --resource

50

Memory limit (GB)

Decomposition Options#

Option

Default

Description

-k, --ksize

9

k-mer size for building the De Bruijn graph

-m, --motif

base

Reference motif set path. Use base for the built-in default (FASTA)

-n, --motifnum

100

Maximum number of motifs to discover

--kratio

0.00

Minimum edge weight threshold relative to the top edge weight in the De Bruijn graph

--kmin

1

Minimum absolute edge weight in the De Bruijn graph

--lmin

-1

Minimum motif length (overrides auto-estimation if >0)

--lmax

-1

Maximum motif length (overrides auto-estimation if >0)

--no-denovo

False

Skip de novo motif discovery; annotate using only the reference motif set

Annotation Options#

Option

Default

Description

-f, --force

False

Force-add reference motifs into the annotation module

--reverse

False

Align motif on the reverse strand

--annotation-min-similarity

0.6

Minimum motif similarity required for annotation

--finding-min-similarity

0.5

Minimum motif similarity to match a query against the reference motif set

--match-score

2

Match score for alignment

--mismatch-penalty

4

Mismatch penalty for alignment

--gap-open-penalty

7

Gap open penalty for alignment

--gap-extend-penalty

4

Gap extend penalty for alignment

Output Options#

Option

Default

Description

--use-raw

False

Output raw motifs based on observed sequences without post-processing

--skip-report

False

Skip HTML report generation

--skip-h5ad

False

Skip h5ad generation

Output Files#

Results are written with the provided <prefix>:

  • <prefix>.annotation.tsv — Per-segment annotation (motif id, CIGAR, position, sequence)

  • <prefix>.concise.tsv — Locus-level summary per sample (copy number, motif array, orientation)

  • <prefix>.motif.tsv — Discovered motif metadata (motif sequence, copy number, label)

  • <prefix>.distance.tsv — Pairwise motif distance matrix

  • <prefix>.web_summary.html — Interactive HTML report (unless --skip-report is set)

  • <prefix>.h5ad — Annotated data object for downstream analysis (unless --skip-h5ad is set)

  • <prefix>.log — Run log

If --use-raw is set, the following additional files are generated:

  • <prefix>_raw.annotation.tsv

  • <prefix>_raw.concise.tsv

  • <prefix>_raw.motif.tsv

  • <prefix>_raw.distance.tsv

  • <prefix>_raw.h5ad (unless --skip-h5ad is set)
